Single Landing Valve

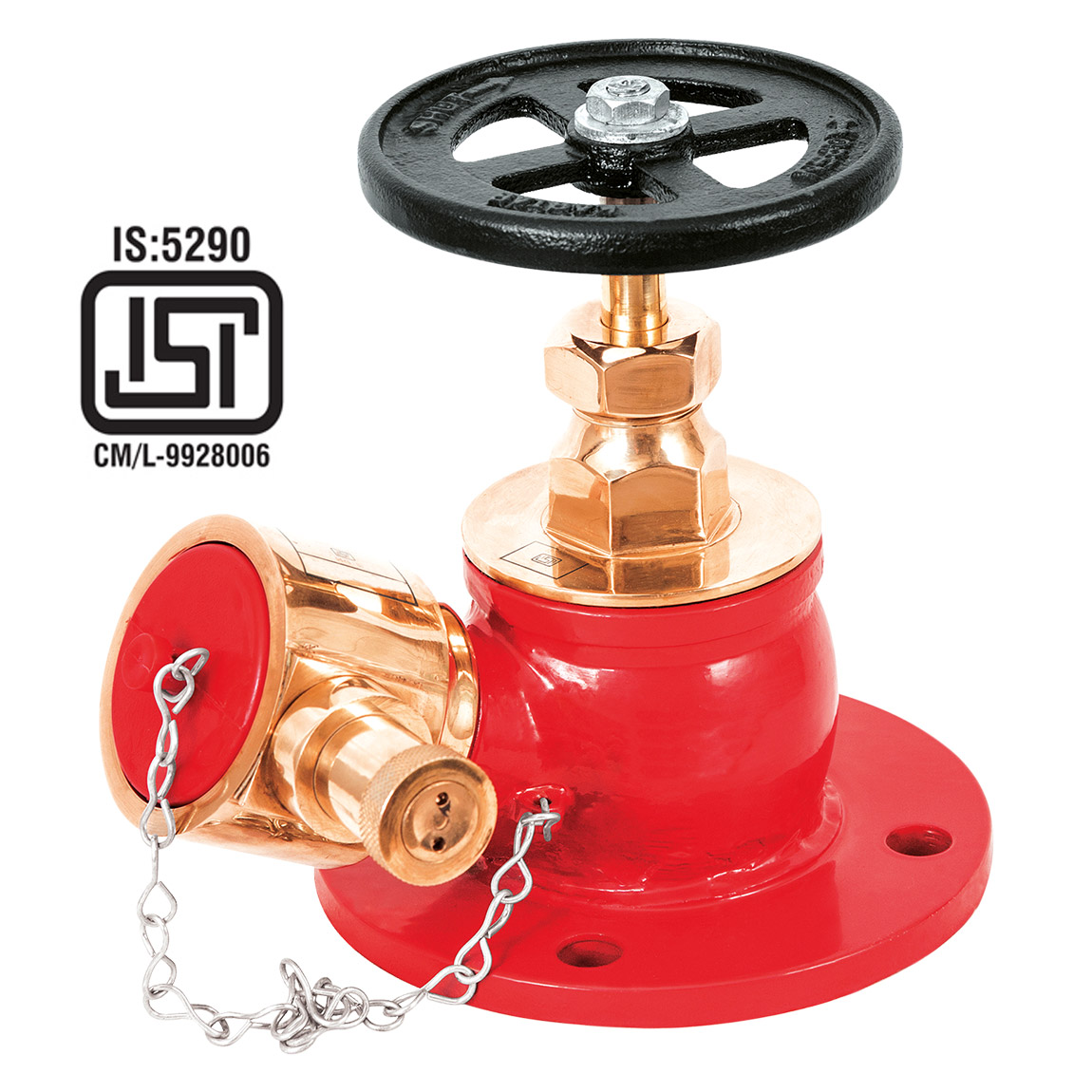

Single Landing Valve Type (A) GUN METAL

images
Type of Material Gun Metal PERFORMANCE TEST
Hydraulic Test : 21 Kgf/cm2
Water Tightness Test : 14 Kgf/cm2
Flow Test : 1800 LPM at 7 Kgf/cm2
Body Bonnet Assembly LTB - IS : 318
Valve Spindle Brass Rod - IS : 319/320
Cast Iron Wheel IS - 210
Rubber Washer IS : 937 (Type-A)
Spring Phosphorus Wire:- IS 7608
Gland Packing Asbestos Thread:- IS:4687 (Type-3)

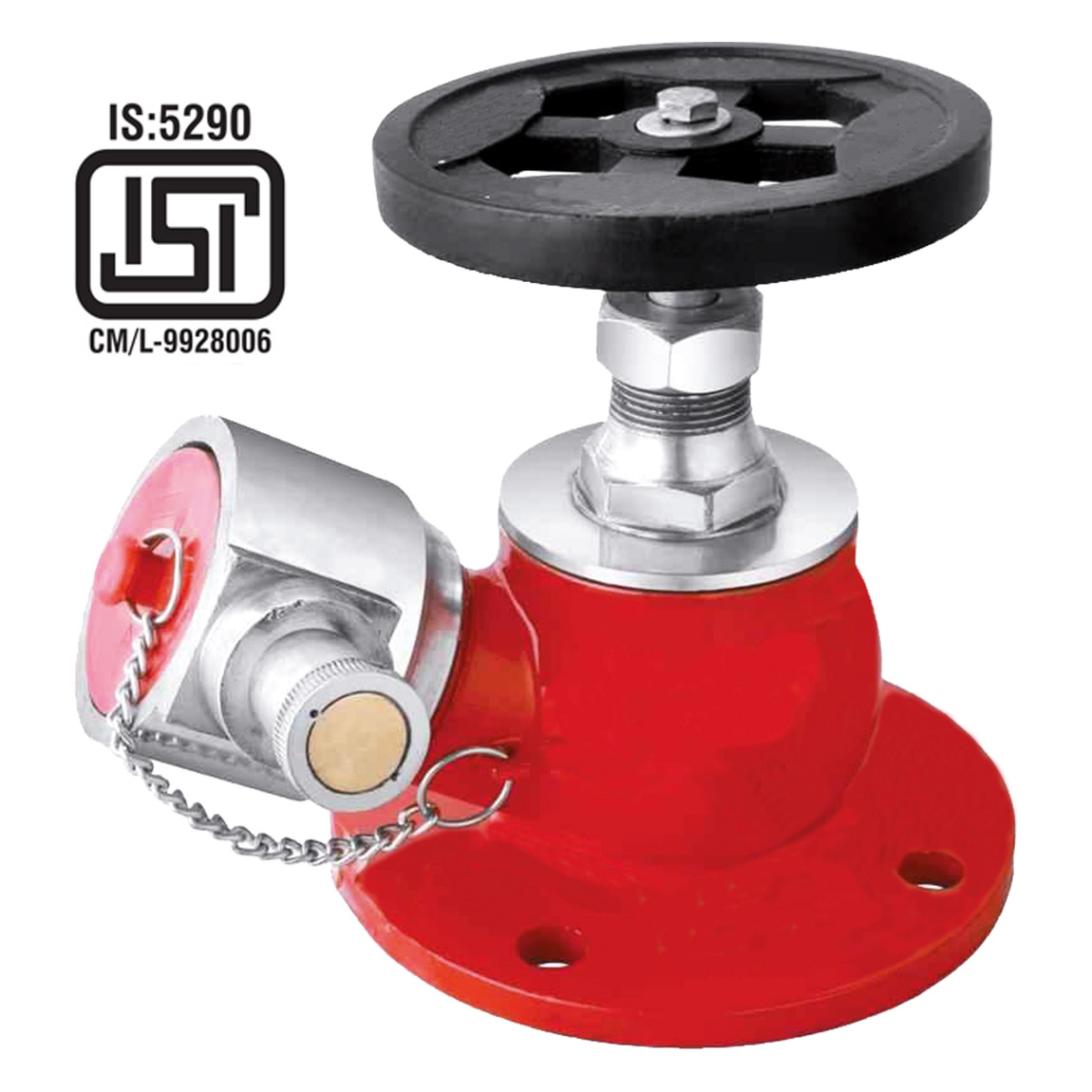

Single Landing Valve Type (A) STAINLESS STEEL

images
Type of Material Stainless Steel PERFORMANCE TEST
Hydraulic Test : 21 Kgf/cm2
Water Tightness Test : 14 Kgf/cm2
Flow Test : 1800 LPM at 7 Kgf/cm2
Body Bonnet Assembly Stainless Steel:- IS 3444
Valve Spindle Stainless Steel:- IS 66003
Cast Iron Wheel IS - 210
Rubber Washer IS : 937 (Type-A)
Spring Stainless Steel:- IS 6528
Gland Packing Asbestos Thread:- IS: 4687 (Type-3)

Size : 63 mm | Comforming Specification : IS : 5290 : 1993  |  Inlet : 80 mm NB Flanged | Outlet : Female Instantaneous
