Double Landing Valve

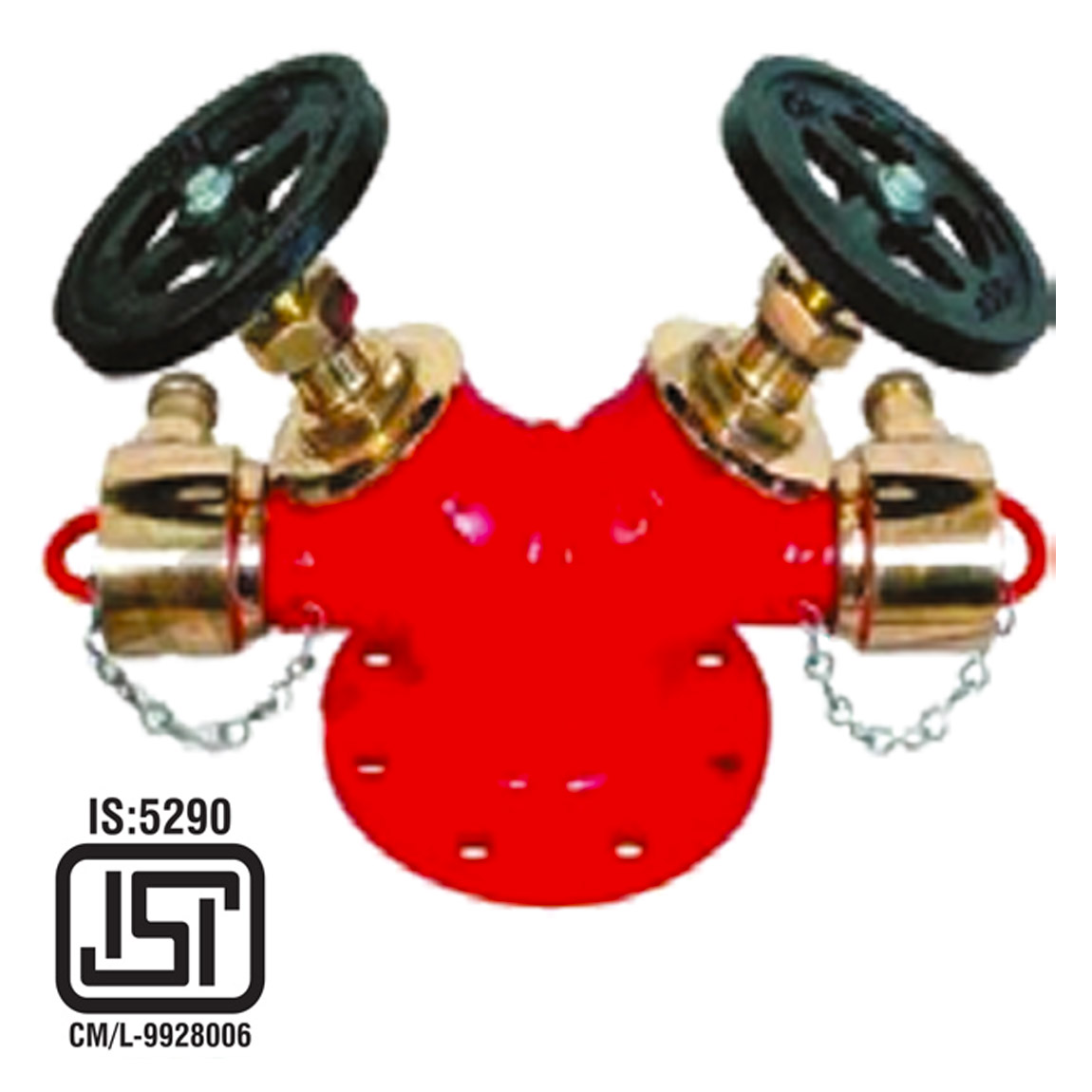

Double Landing Valve Type (B) Gun Metal
| Type of Material | Gun Metal | PERFORMANCE TEST Hydraulic Test : 21 Kgf/cm2 Water Tightness Test : 14 Kgf/cm2 Flow Test : 1800 LPM at 7 Kgf/cm2 |
| Body Bonnet Assembly | LTB - IS : 318 | |
| Valve Spindle | Brass Rod - IS : 319/320 | |
| Cast Iron Wheel | IS - 210 | |
| Rubber Washer | IS : 937 (Type-A) | |
| Spring | Phosphorus Wire:- IS 7608 | |
| Gland Packing | Asbestos Thread:- IS:4687 (Type-3) |
Size: 63 mm | Material: Gun Metal/Stainless Steel | Inlet: 100 mm NB Flanged | Outlet: Female Instantaneous

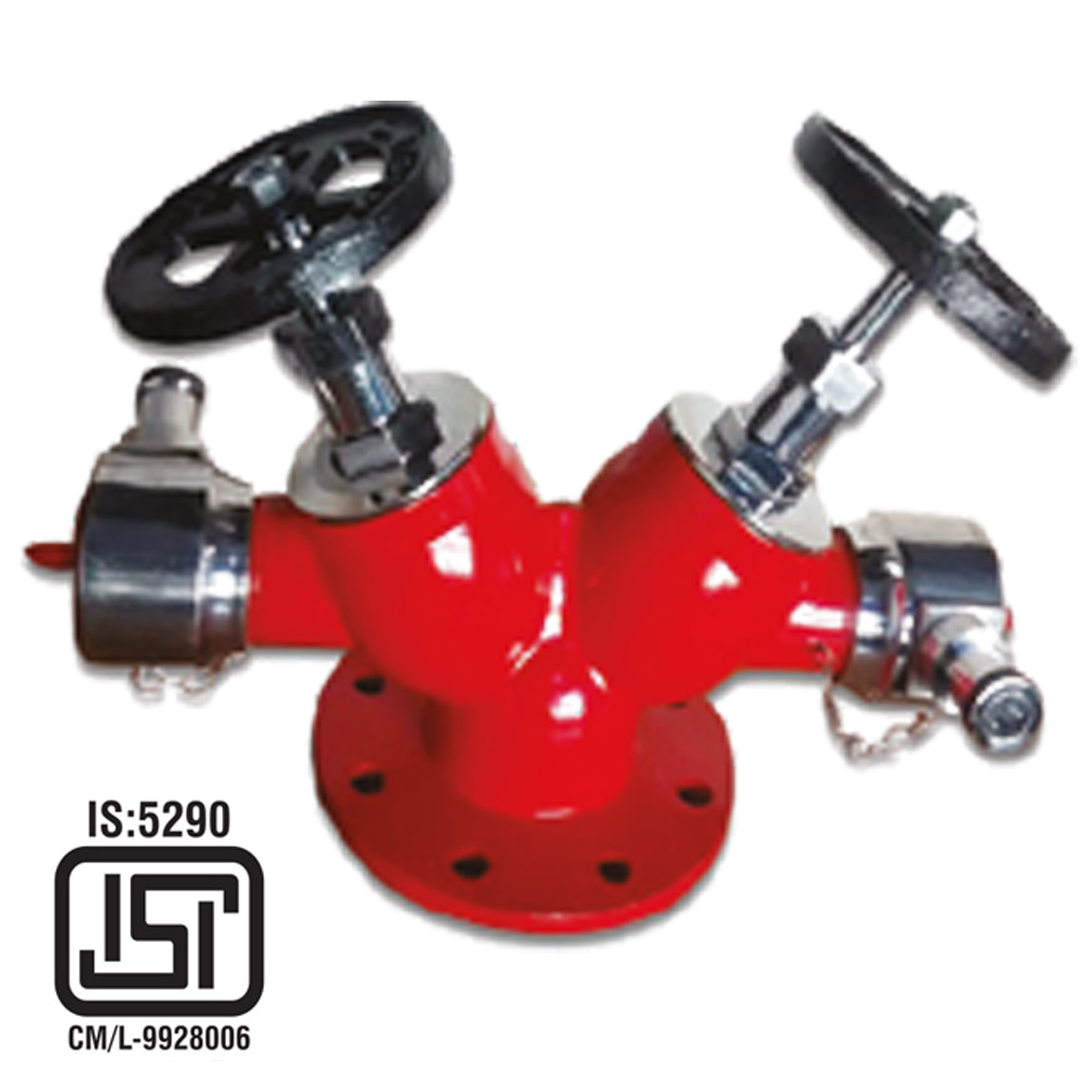

Double Landing Valve Type (B) Stainless Steel
| Type of Material | Stainless Steel | PERFORMANCE TEST Hydraulic Test : 21 Kgf/cm2 Water Tightness Test : 14 Kgf/cm2 Flow Test : 1800 LPM at 7 Kgf/cm2 |
| Body Bonnet Assembly | Stainless Steel:- IS 3444 | |
| Valve Spindle | Stainless Steel:- IS 66003 | |
| Cast Iron Wheel | IS - 210 | |
| Rubber Washer | IS : 937 (Type-A) | |
| Spring | Stainless Steel:- IS 6528 | |
| Gland Packing | Asbestos Thread:- IS: 4687 (Type-3) |
Size: 63 mm | Material: Gun Metal/Stainless Steel |
Inlet: 100 mm NB Flanged | Outlet: Female Instantaneous
