Agni Shield Carbon Dioxide Portable Fire Extinguishers

images
Electronic equipment in any organisation creates its backbone, as several daily activities depend on their proper function. Fire at such a place can not only result into huge financial loss, but can also shutdown all business operations.

Keeping these facts in mind, we have created CO2 extinguishers that are hard on fire but easy on operations. These extinguishers displace fire fuelling Oxygen from the surroundings, suffocating fire through a blanket effect. Being gas based and electrically non-conductive, they do not affect any of your sensitive electronic equipment.

KEY FEATURES
  • SIMPLE OPERATION & EASY TO MAINTAIN
  • NO RESIDUE AFTER DISCHARGE WHICH MAKES IT IDEAL FOR SENSITIVE ELECTRICAL EQUIPMENT.

Technical Specifications

MODEL AS Co2 - 4.5 AS Co2 - 2
Capacity (Kg.) 4.5 2
Filling Ratio 0.667 0.667
Type of Extinguishing Media Co2 GAS Confirming to IS:15222 Co2 GAS Confirming to IS:15222
Expellant Self Self
Minimum Effective Discharge (%) 95 95
Discharge Time (in Sec.) More than 2 More than 1
Minimum Throw (in mtr.) More than 8 More than 8
Operating Position Upright Upright
Operating Tempreature Range(C) (-)30 to (+)60 (-)30 to (+)60
Operating Valve(3224) Squeeze Grip / Wheel Type Squeeze Grip / Wheel Type
Fire Rating 55B 21B

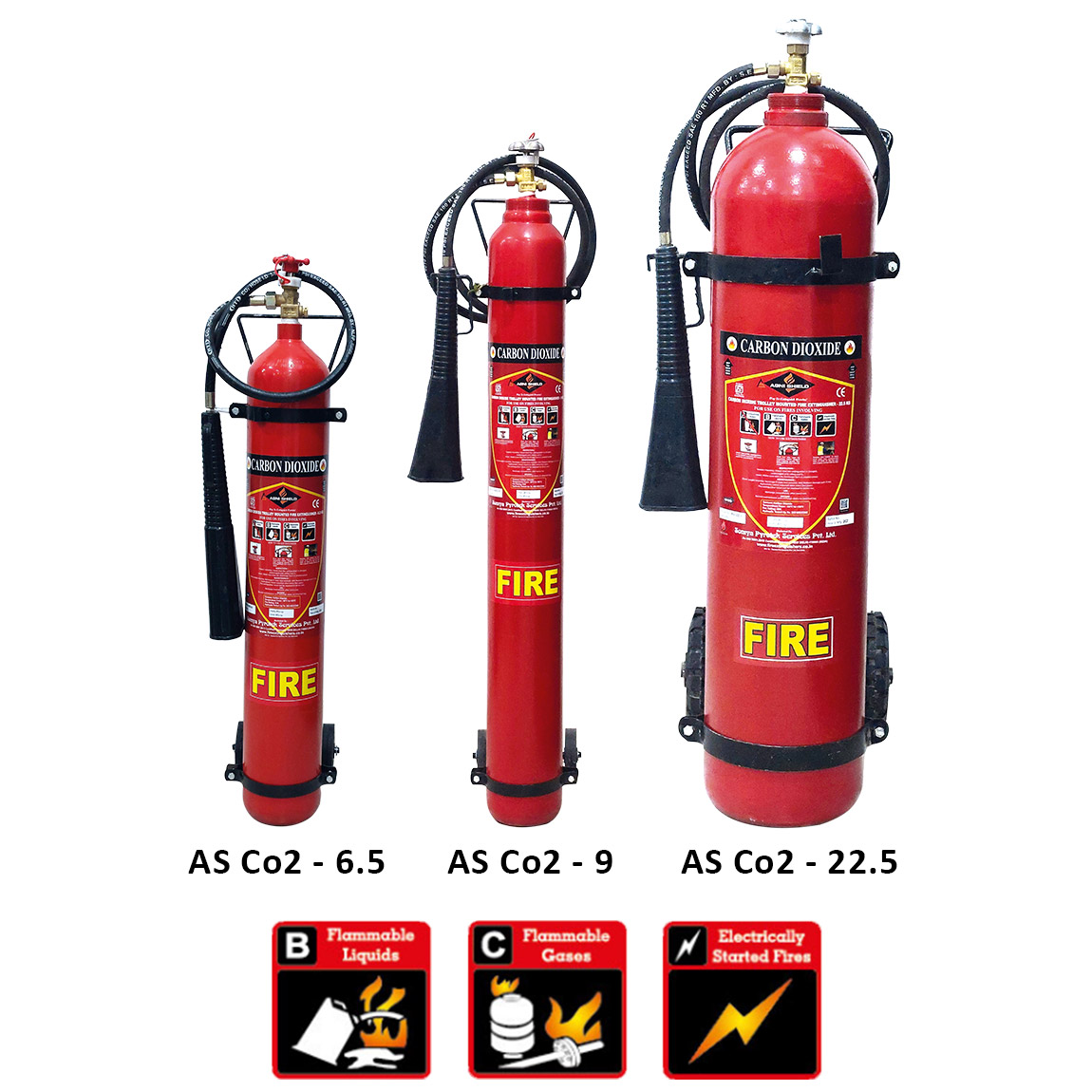

Agni Shield Carbon Dioxide Trolley Fire Extinguishers

images
Electronic equipment in any organisation creates its backbone, as several daily activities depend on their proper function. Fire at such a place can not only result into huge financial loss, but can also shutdown all business operations.

Keeping these facts in mind, we have created CO2 extinguishers that are hard on fire but easy on operations. These extinguishers displace fire fuelling Oxygen from the surroundings, suffocating fire through a blanket effect. Being gas based and electrically non-conductive, they do not affect any of your sensitive electronic equipment.

KEY FEATURES
  • SIMPLE OPERATION & EASY TO MAINTAIN
  • NO RESIDUE AFTER DISCHARGE WHICH MAKES IT IDEAL FOR SENSITIVE ELECTRICAL EQUIPMENT.

Technical Specifications

MODEL AS Co2 - 6.5 AS Co2 - 9 AS Co2 - 22.5
Capacity (Kg.) 4.5 2 2
Filling Ratio 0.667 0.667 0.667
Type of Extinguishing Media Co2 GAS Confirming to IS:15222 Co2 GAS Confirming to IS:15222 Co2 GAS Confirming to IS:15222
Expellant Self Self Self
Minimum Effective Discharge (%) 95 95 95
Discharge Time (in Sec.) More than 2 More than 2 More than 2
Minimum Throw (in mtr.) More than 8 More than 8 More than 8
Operating Position Upright Upright Upright
Operating Tempreature Range(C) (-)30 to (+)55 (-)30 to (+)55 (-)30 to (+)55
Operating Valve(3224) Squeeze Grip / Wheel Type Squeeze Grip / Wheel Type Squeeze Grip / Wheel Type
Fire Rating 55B 55B 89B
