CCTV

images
A Good CCTV System Can Make Your Business Safer, More Efficient, and Less Prone to Theft and Accidents

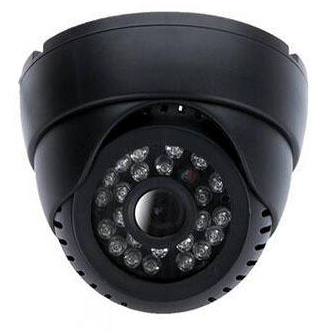

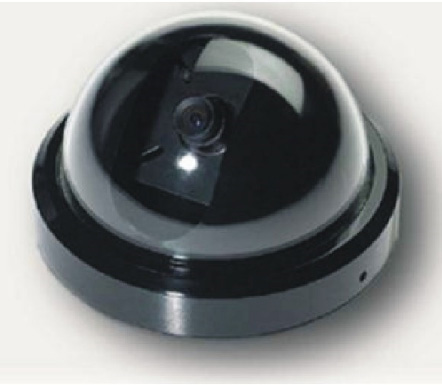

Dome Camera
  • Image Sensor : 1/3 sony CCD
  • Scanning System : 525 line 2:1
  • Resolution : 380 TVL line
  • Scanning Frequency  : 15.734KHz, 59.94Hz
  • Min.Illumination : 0.1 Lux At F1.2
  • Video Output : VBS 1.0Vp-p 975 ohm load
  • Power supply : DC 12v(10.2v-14).

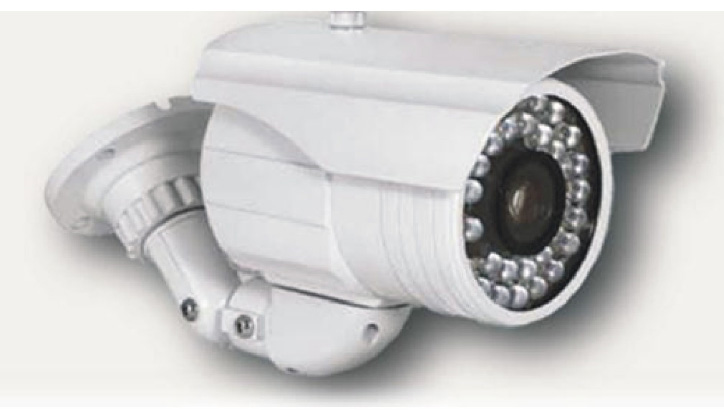

Weather Proof

images
  • 1/3" Sony Colour CCD & DSP 480/540 TVL line
  • 36m IR Range (30 PCS C/8 IR LED)
  • Image sensor 1/3 inch sony CCD
  • Usable Illumination : 0 LUX by CDS
  • IR LED -24 Pic
  • Water Resistant IP 66

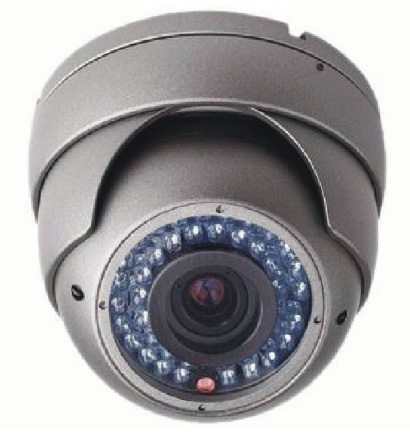

IR Dome Camera

images
  • 1/3\" Sony Super CCD
  • High Resolution : 420TV Lines
  • 3.6MM Fixed Lens (6mm Optional)
  • PAL : 500(H)X 582(V);
  • S/N Ratio More than 48DB
  • 0.1Lux / F.12

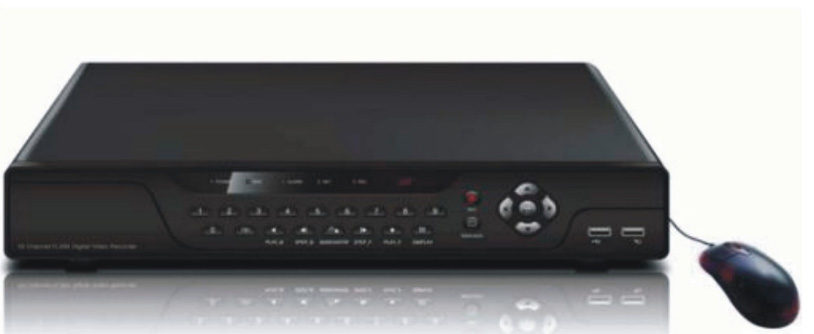

DVR

images
  • H.264 compression
  • Channel Video + 4 Ch Audio
  • CIF Real Time 100 FPS
  • 1 Sata HDD Support
  • Network Support - for Internet & Mobile
Model Available :- 8CH, 16CH, 32 CH

Camera 1

images
Image Sensor : 1/3" High Definition Real Image Sensor
Effective Pixels (H x V) PAL : 976(H)X582(V)
Resolution : 700TVL
Day / Night : True Day / Night with ICR Filter
IR Distance : 24pc IR LED 850nm for 10-15 Meters
Lens : 3.6mm fixed IR Corrected Lens
Power Consumption : 150mA (250mA IR LED On)

Camera 2

images
Image Sensor : 1/3" High Definition Real Image Sensor
Effective Pixels (H x V) PAL : 976(H)X582(V)
Resolution : 700TVL
Day / Night : True Day / Night with ICR Filter
IR Distance : 35pc IR LED 850nm for 25-30 Meters
Lens : 2.8-12mm Vari-Focal IR Corrected
Power Consumption : 175mA (320mA IR LED On)

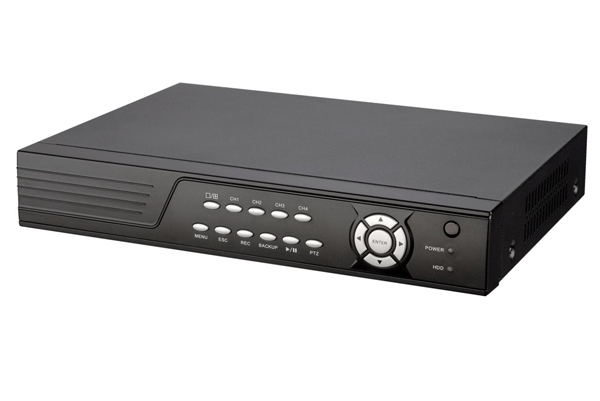

DVR

images
4,8 & 16 Channel DVR,
H.264 Compression, Real Time
Recording @ 960H (WD1) / D1 Resolution,
2 Channel Audio, 1 SATA, HDMI

Camera 3

images
Image Sensor : 1/3' High Definition Real Image Sensor
Effective Pixels (H x V) PAL : 976(H)X582(V)
Resolution : 700TVL
Day / Night : True Day / Night with ICR Filter
IR Distance : 24pcs IR LED 850nm for 15-20 Meters
Lens : 3.6mm fixed IR Corrected Lens
Power Consumption : 150mA (350mA IR LED On)
